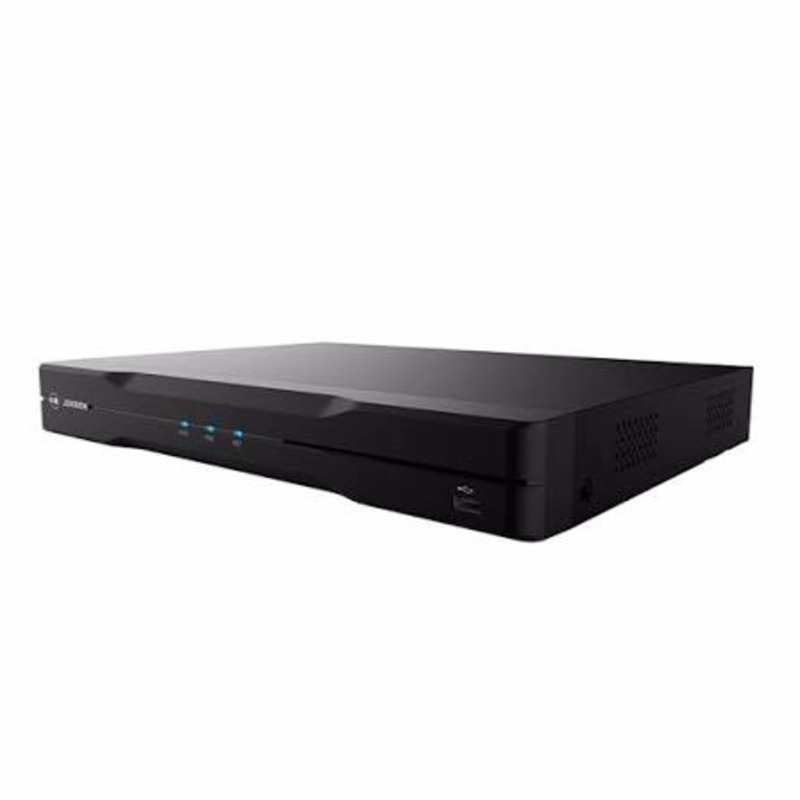

JOVISION JVS-ND7932-HV – 32CH 2HDD H.265 Network Video Recorder (NVR)

The JOVISION JVS-ND7932-HV is a professional 32-channel Network Video Recorder designed for IP video surveillance systems. It supports up to 32 IP cameras, H.265/H.264 video compression, 4K HDMI video output, intelligent detection, human detection, remote monitoring, and dual SATA hard-drive storage.

Key Features:
• 32-channel IP camera input
• H.265 / H.264 video compression
• Up to 4K (3840 × 2160) HDMI video output
• Supports 2 × SATA HDD interfaces
• Supports up to 10TB HDD capacity according to the current manufacturer specification
• VStar user interface
• VSmart intelligent coding technology
• Human detection and intelligent video detection
• Motion detection and no-video detection
• ONVIF 2.4 support for compatible third-party IP cameras
• RS485 interface for compatible PTZ control
• CloudSEE remote monitoring
• iOS and Android mobile app support
• USB backup and network backup
• Suitable for homes, offices, shops, warehouses, factories, schools, commercial buildings and other security applications

Video & Recording:
• IP Camera Input: 32 Channels
• Compression: H.265 / H.264
• Recording Resolution: 5MP / 4MP / 1080p / 960p / 720p
• Recording Modes: Manual / Schedule / Motion Detection
• Multi-channel playback support
• Playback functions include Fast Forward, Rewind, Slow Playback, Pause, Step, Zoom and Snapshot

Display Output:
• HDMI: Up to 3840 × 2160 (4K)
• VGA: Up to 1920 × 1080
• Multiple display modes supported

Storage & Backup:
• 2 × SATA HDD interfaces
• Up to 10TB HDD capacity according to manufacturer specification
• 2 × USB ports
• FAT32 USB backup
• Network backup

Network & Remote Access:
• 1 × RJ45 network interface
• 10/100/1000 Mbps network support
• TCP/IP, DHCP, UDP, SMTP and NTP protocols
• CloudSEE remote monitoring
• Android and iOS mobile application support
• ONVIF 2.4 compatibility

Audio:
• 1 × RCA Audio Input
• 1 × RCA Audio Output
• HDMI audio output supported

PTZ & Alarm Functions:
• RS485 PTZ interface
• Motion detection
• Recording trigger
• Snapshot
• PTZ trigger
• Voice alert
• Email notification
• Client notification
• Buzzer

Power & Environment:
• Power Supply: DC 12V
• Power Consumption: ≤15W without HDD
• Operating Temperature: -10°C to +55°C
• Operating Humidity: 10%–90%

Dimensions & Weight:
• Dimensions: 360 × 45 × 264 mm
• Weight: ≤2.0 kg without HDD

Brand: JOVISION
Model: JVS-ND7932-HV
Product Type: 32-Channel 2-HDD H.265 Network Video Recorder
PoE: No – requires a separate PoE switch or suitable network infrastructure for IP cameras.
