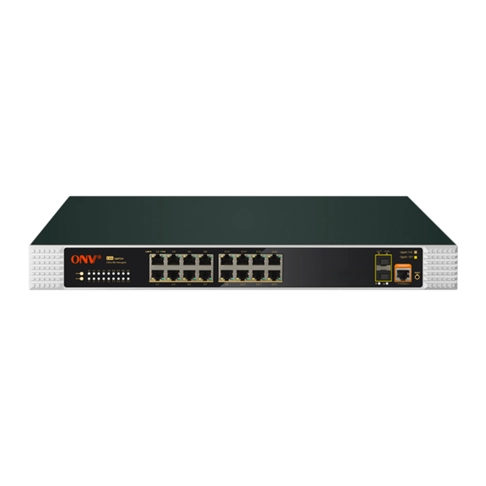

- Gigabit 18-port L2+ managed industrial PoE switch
The ONV-IPS33018PFM is a Gigabit managed industrial PoE fiber switch independently developed by ONV. It has 16*10/100/1000Base-T adaptive RJ45 ports and 2*100/1000Base-X uplink SFP fiber ports. Port 1-16 can support IEEE 802.3 af/at PoE standard and the single-port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP cameras, VoIP phones, and industrial sensors through a network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy, and green energy, industrial scenes such as construction setting up a cost-effective and stable communication network.
The ONV-IPS33018PFM has L2+ network management function to support IPV4/ IPV6 management, static route forwardings, complete security protection, complete ACL/ QoS policy and rich VLAN functions for easy management and maintenance. Supports multiple network redundancy protocols STP/ RSTP/ MSTP (<50ms) and ITU-T G.8032 (<20ms) ERPS to improve link backup and network reliability. When a one-way network fails, communication can be quickly restored to ensure important Continuous communication of applications. According to application needs, PoE power supply management, port flow control, VLAN division, STP, RSTP, and other application configurations can be performed through Web, CLI, and SNMP network management methods.
Shipping
Guaranteed to get by 13 - 16 May Free shipping
Get a $5.00 voucher if your order arrives late.
Return & Warranty
5 years brand warranty
Sold By
AYESHA TELECOMPositive Seller Ratings
0%
Ship on Time
100%
Contact with Seller
Specification
Network ProtocolIEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Max Power Per Port30W, IEEE 802.3 af/at
Model ONV-IPS33018PFM ONV-IPS33018PFM-at Interface Characteristics Fixed Port 1*RS232 Console port (115200,N,8,1) 2*100/1000Base-X uplink SFP fiber ports (Data) 16*10/100/1000Base-T PoE ports (Data/ Power) Ethernet Port Port 1-16 can support 10/100/1000Base-T auto-sensing, Full/ half duplex MDI/ MDI-X self-adaption Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) Optical Fiber Port Gigabit optical fiber interface, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC) Optical Cable/ Distance Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km Chip Parameter Network Management Type L2+ Network Protocol IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x Forwarding Mode Store and Forward (Full Wire Speed) Switching Capacity 52Gbps (non-blocking) Forwarding Rate@64byte 26.78Mpps MAC 8K Buffer Memory 6M Jumbo Frame 9.6K LED Indicator PoE: PoE (Green), Rate: Speed: (Green), Fiber port: L/A (Green), Power: PWR (Yellow), System: SYS (Yellow), Network: Link (Yellow) Reset Switch Yes PoE& Power Supply PoE Port Port 1-16 PoE Management PoE power supply total power limit configuration Power delay start, PoE work and time scheduling Port PoE working status display, Port PoE output priority configuration Port PoE output power distribution, PoE on/off, af/at power distribution Power Supply Pin 1/2(+) 3/6 (-) Max Power Per Port 30W, IEEE 802.3 af/at Total PWR/ Input Voltage250W /(AC100-240V)
