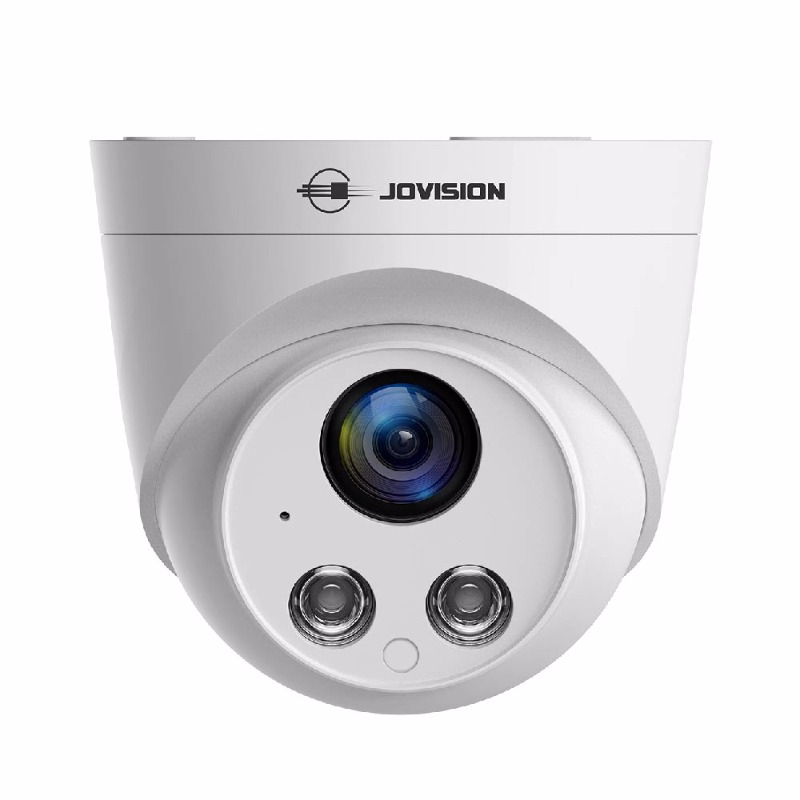

JOVISION JVS-N933-K1-PE – 3MP Dome Starlight Audio PoE IP Camera

The JOVISION JVS-N933-K1-PE is a professional 3MP Starlight Audio PoE Dome IP Camera designed for reliable video surveillance in homes, offices, retail stores, restaurants, warehouses, commercial buildings, and other security applications. It features a 1/2.9" CMOS sensor, up to 2304×1296 resolution at 25fps, built-in microphone, Starlight function, IR night vision, H.265/H.264 video compression, and IEEE 802.3af PoE support.

Key Features

• 3.0MP High-Resolution Video – Up to 2304×1296 @ 25fps
• Starlight Function – Designed for improved image performance in low-light conditions
• Built-in Microphone – Supports audio recording
• PoE Support – Power and network/data can be carried through a compatible Ethernet connection
• H.265 / H.264 Compression – Efficient video compression for reduced bandwidth and storage requirements
• Up to 15m IR Night Vision – Reliable monitoring in dark environments
• 4mm Fixed Lens – H: 78.5°, V: 42.8°, D: 92.6° viewing angle
• Motion Detection – Supports motion detection and email alarm notification
• ONVIF 2.4 – Compatible with supported ONVIF-based NVR/VMS systems
• CloudSEE 2.0 – Network transmission and remote management support
• iOS & Android Support – Remote monitoring from compatible mobile devices
• 2 Video Streams – Supports different monitoring and recording requirements
• Automatic Day/Night Switching
• BLC / HLC / 3D DNR / Defog image enhancement functions
• Privacy Masking – Up to 8 rectangular areas
• Up to 13 Users – Network access support

Camera Specifications

Brand: JOVISION
Model: JVS-N933-K1-PE
Product Type: 3MP Dome Starlight Audio PoE IP Camera
Image Sensor: 1/2.9" CMOS Sensor
Effective Pixels: 3.0MP
Maximum Resolution: 2304 × 1296
Frame Rate: Up to 25fps
SNR: 52dB
Minimum Illumination: 0 Lux with IR ON
Video Compression: H.265 / H.264
Bit Rate: 256Kbps – 8Mbps

Lens & Field of View

Lens: 4mm Fixed Lens, M12
Horizontal Field of View: 78.5°
Vertical Field of View: 42.8°
Diagonal Field of View: 92.6°

Starlight & Night Vision

The camera features Starlight technology for improved surveillance performance in low-light environments and is equipped with two high-power IR LEDs providing up to 15 meters of infrared night vision. Image enhancement technologies including 3D DNR, BLC, HLC and Defog help improve image clarity under challenging lighting conditions.

Audio Recording

The JVS-N933-K1-PE features a built-in microphone and supports audio recording. When connected to a compatible NVR or supported recording software, audio can be recorded together with video.

Network & PoE

Ethernet: 10/100Mbps RJ45
PoE: IEEE 802.3af
Power Supply: DC12V or PoE
ONVIF: ONVIF 2.4
Protocols: HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS, DDNS
Network Platform: CloudSEE 2.0
Mobile Support: iOS / Android
Video Streams: 2
